For Vehicles without Partition Wall

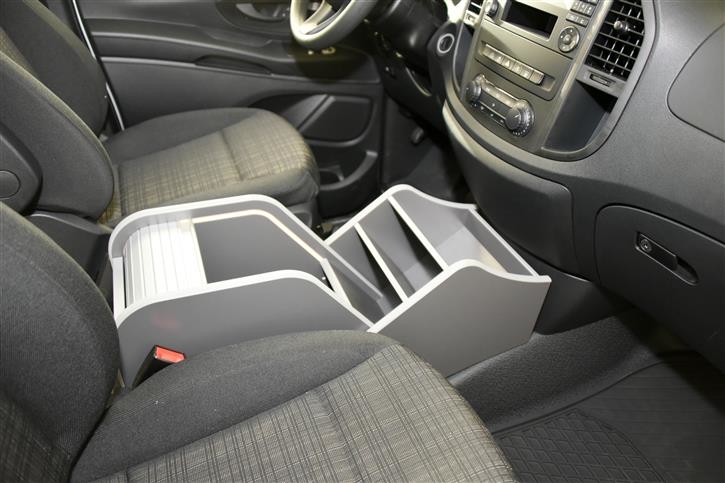

MB Vito without factory installed central tray

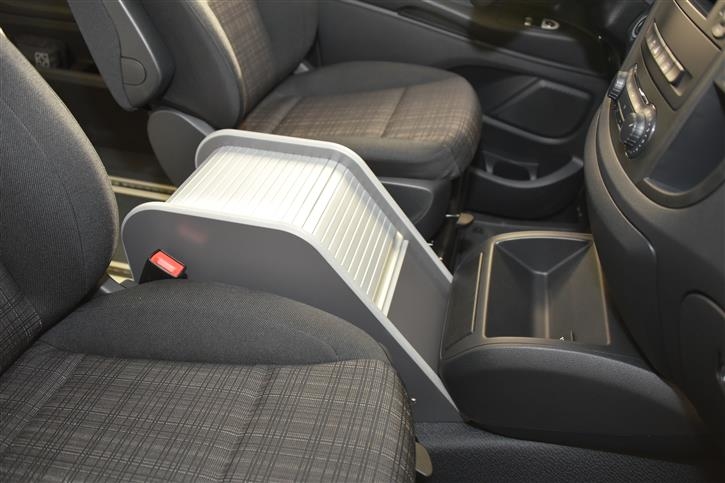

MB Vito with factory installed central tray

Product Highlights

The centre console for the Mercedes-Benz Vito without partition wall (van or Tourer) from model year 2015 creates additional storage space in the driver's cab.

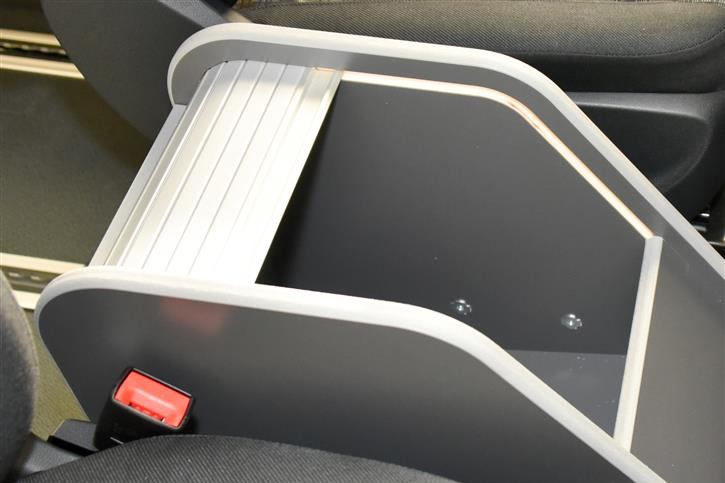

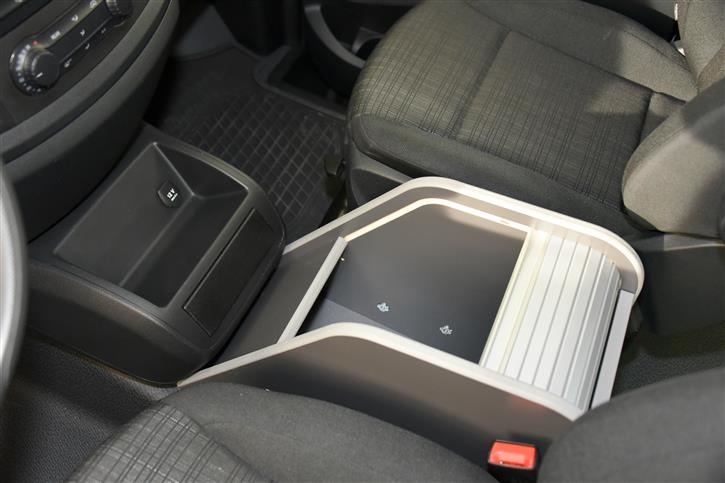

As the Vito from model year 2015 can be ordered with a factory installed central tray (please check your configuration), Bösenberg's centre console is able to adapt due to its two-piece design. The actual centre console with a practical roller shutter can be installed in vehicles with and without standard central tray. For vehicles without a central tray, a useful extension part for additional storage compartments can be fastened to the centre console.



In any configuration, the console is only suitable for vehicles with a single passenger seat. For vehicles with auxiliary heating, the two centric plastic panels of the seat bases need to be removed.



Mounting material (brackets and screws) and instructions are included. The mounting is done using fitting panels on the seat bases.

Technical Details of the Central Console

Usable dimensions of the inner compartment:

  • Width: 246 mm
  • Length: 330 - 440 (usable / max)
  • Height: 348 - 155 mm (back / front). These are the usable dimensions, the console is tapered



Colours:

  • Console surfaces slate grey, similar to RAL 7015, edges dark grey, similar to RAL 7037
  • Fitting brackets black, powder-coated
  • Roller shutter plastic silver

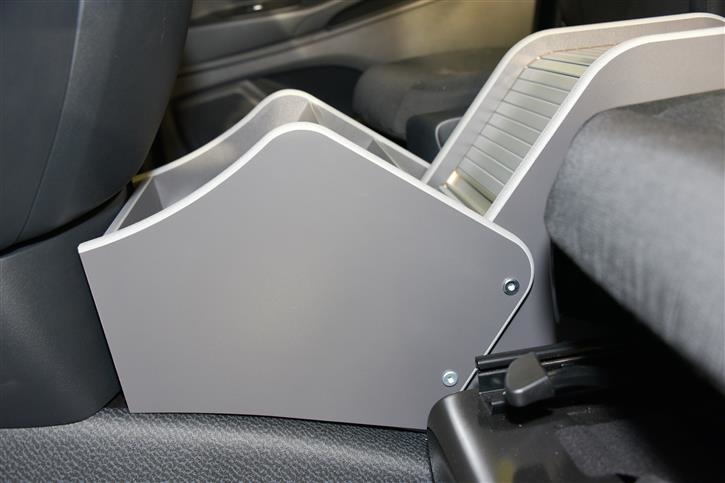

Technical Details of the Extension Part

Usable dimensions of the open compartments and trays:

  • Front tray: 246 x 83 x 191 mm (wxhxd)
  • 2x small tray: 246 x 75 x 193 mm (wxhxd)



Colours:

  • Surfaces slate grey, similar to RAL 7015, edges dark grey, similar to RAL 7037

Order this product online (sorry, the webshop is German only)

Mittelkonsole hoch für MB Vito ohne Trennwand

Art-No.: 01-002-004-0018
Manufacturer: Bösenberg
Shipping time: 1 Woche

Produktdetails
Piece from 259,00 €
inkl.19% VAT, plus shipping costs
Configure and order

Order this product online (sorry, the webshop is German only)

Ansatzteil für Mittelkonsole hoch für MB Vito

Art-No.: 01-002-004-0019
Manufacturer: Bösenberg
Shipping time: 1 Woche

Produktdetails
Piece from 155,00 €
inkl.19% VAT, plus shipping costs
Configure and order
