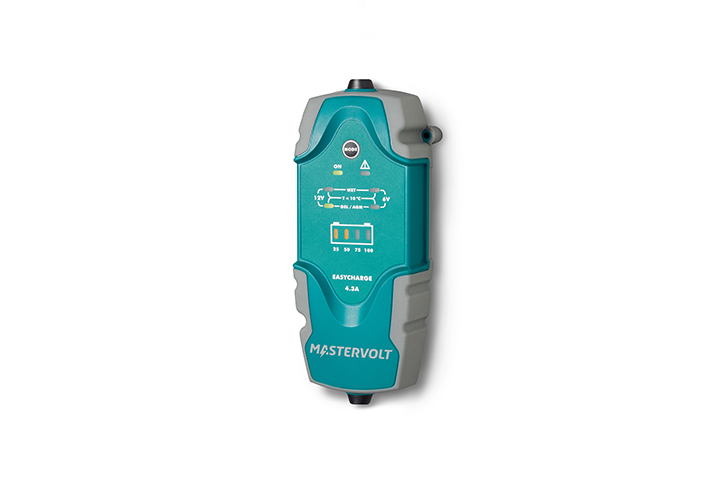

EasyCharge 4.3A

Product Highlights

Power you can rely on.



  • Spark free and reverse polarity protected.
  • Short circuit proof and waterproof.
  • Charges and maintains 6 and 12 V wet, AGM and gel batteries.
  • Extends battery life.
  • Durable, weather-resistant housing.
  • Includes ring and alligator clip connections, with integrated fuse for additional safety.

Waterproof portable battery chargers

For people on the move, the EasyCharge portable battery charger offers a rugged solution that can be used on the boat, car, motorcycle, and camper van. With a rugged, ergonomic construction, and waterproof to IP65 standard, the portable chargers have an intuitive control panel, and are available as a 230V/50Hz model of 4.3 A.



Users can quickly select between 6 V (ideal for toys, classic cars and motorcycles) and 12 V operation. The units include 1.8m of DC cable that connects to either a 61cm lead with ring terminals, or a 61cm lead with alligator clips, for easy installation and a variety of applications; both leads are included in the package.



The battery chargers have the ability to charge wet, AGM and gel batteries, with a universal input (120-230 V) for total worldwide freedom.

Specifications

General specifications

Total charge current4.3 A
Recommended battery capacity: maintain14 to 120 Ah
Recommended battery capacity: charge14 to 90 Ah
Nominal input voltage120/230 V (90-265 V), 50/60 Hz
AC connection1.8 m cable + Euro plug (CEE7/16)
DC connectionring and alligator clip connections, with integrated fuse for additional safety
Dimensions, hxwxd161 x 72 x 43.7 mm
Weight0.9 kg
ApprovalsCE, ABYC

Technical specifications

Charge characteristicIUoUo, automatic 3-step+ for gel/AGM/wet
Temperature range (ambient temp.)-20 °C to 40 °C
Protection degreeIP65
Protectionsshort circuit, reverse polarity, over voltage, current limited, over temperature
