Equipment Truck for Respiratory Protection Monitoring

Image 1 of 12

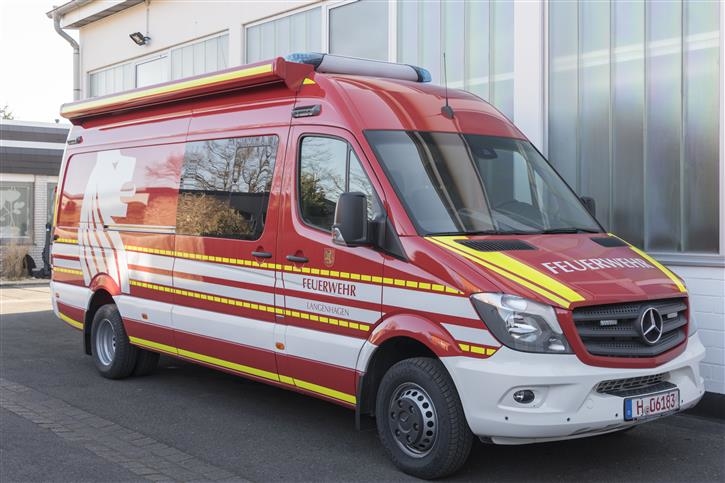

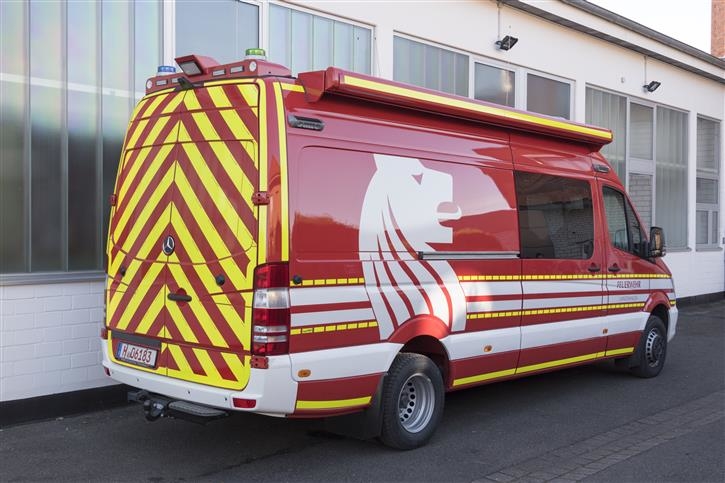

Exterior design
Image 2 of 12
Exterior design
Image 3 of 12

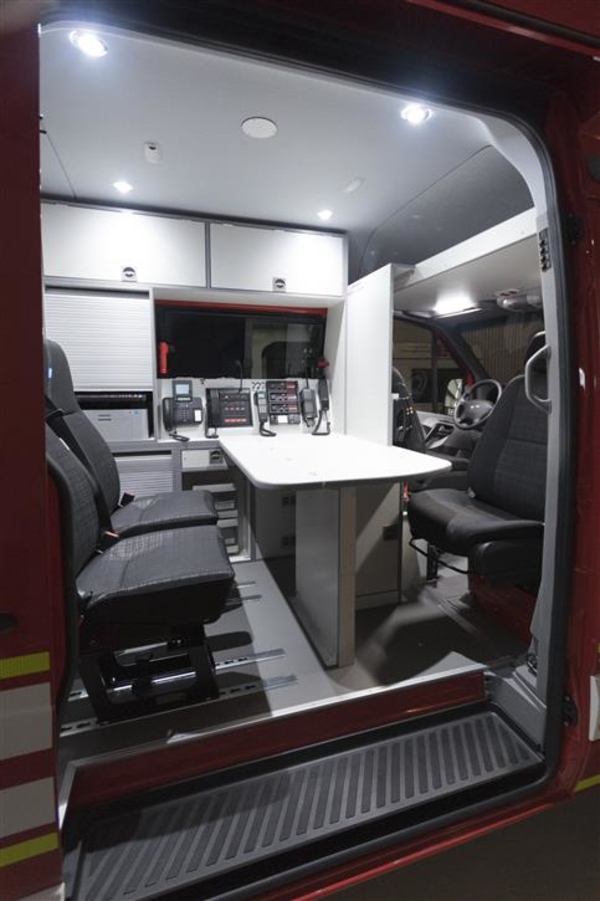

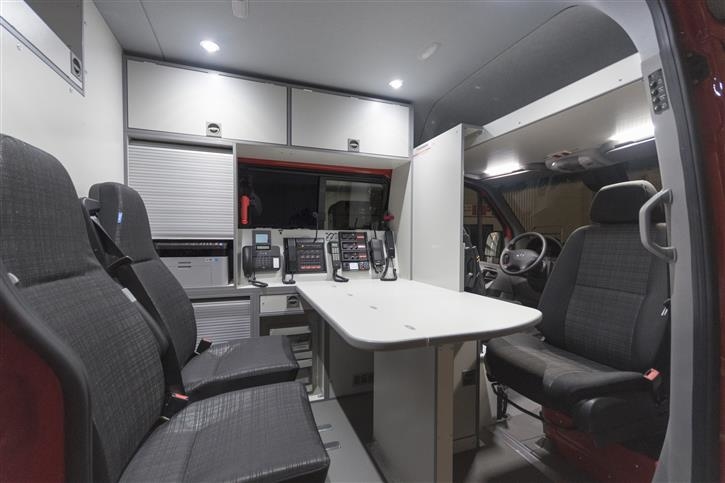

Interior of the radio / conference area
Image 4 of 12

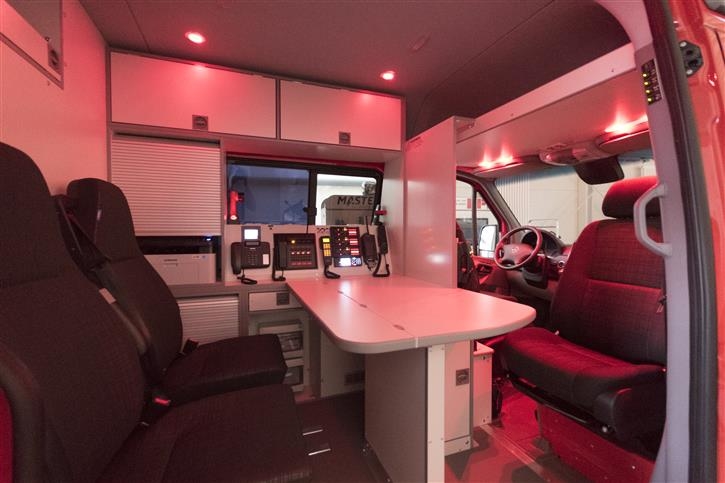

Night design of the radio / conference area
Image 5 of 12

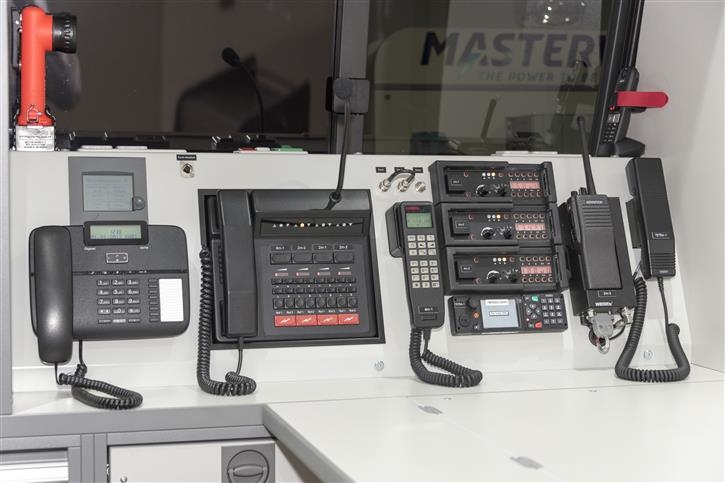

Communication technology
Image 6 of 12

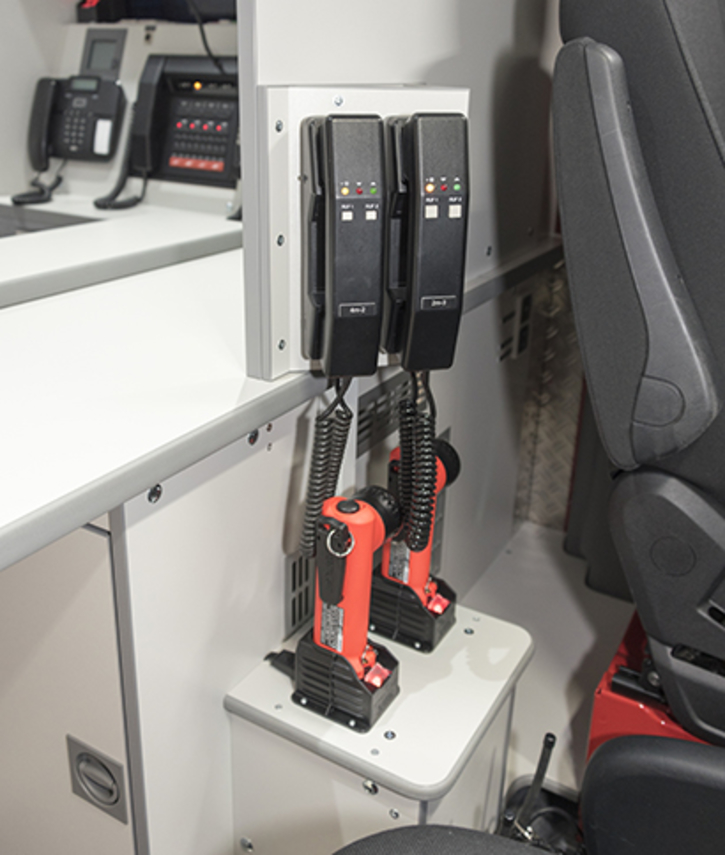

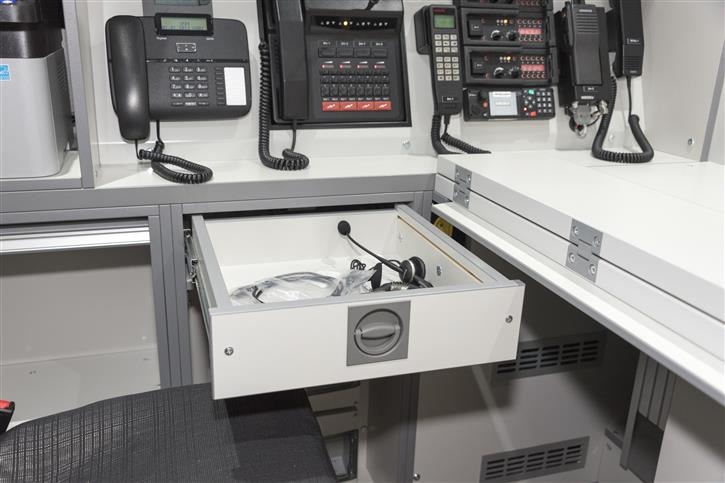

Communication technology at the rotatable passenger seat
Image 7 of 12

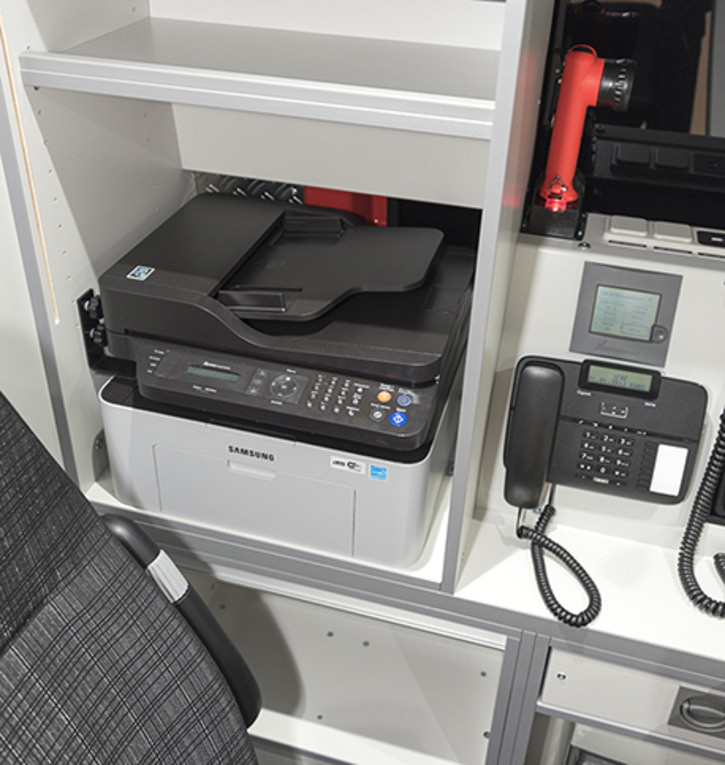

Multifunctional device in the roller shutter cupboard
Image 8 of 12
Image 9 of 12

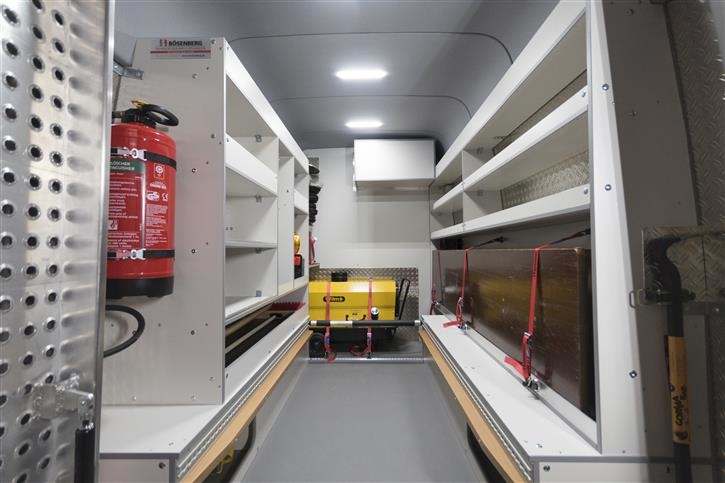

Combined shelf and cargo protecting system for a tent
Image 10 of 12

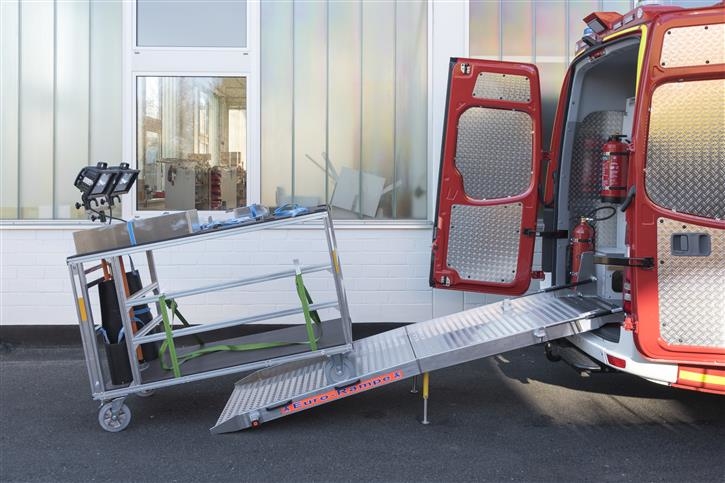

The equipment cart can be pushed into the vehicle over a ramp
Image 11 of 12

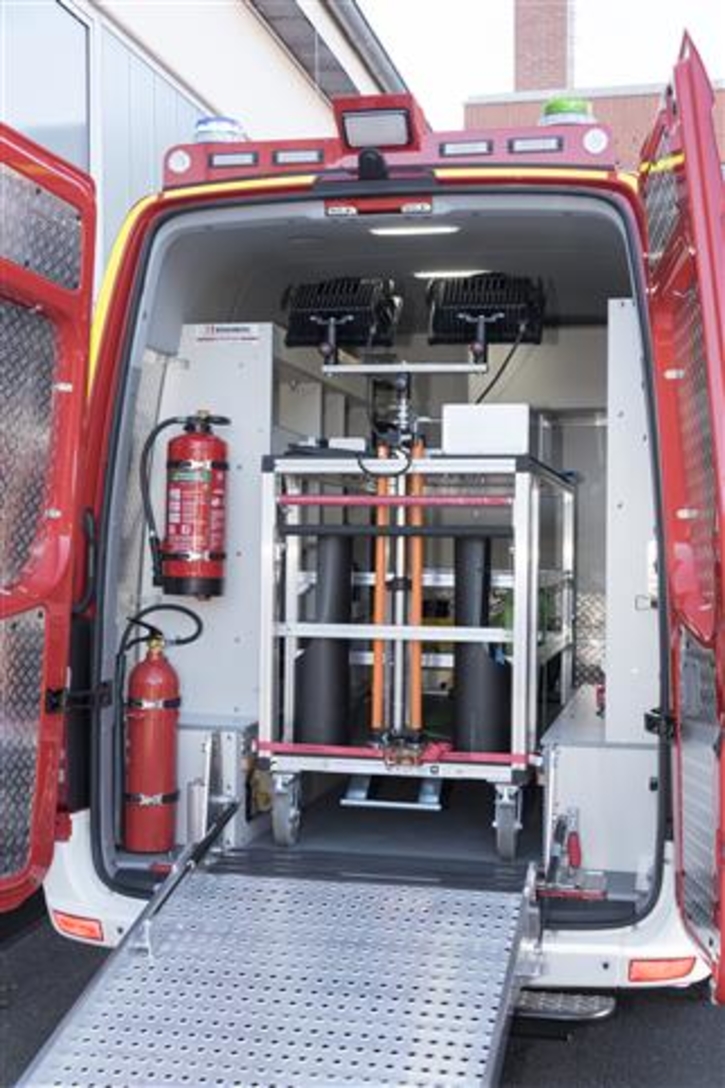

The loaded equipment cart
Image 12 of 12

Highlights

The vehicle is devided into two areas through a solid partition wall. In the front is the communications and controlling area with up to three workingstations and a conference area with four seats.

In the back a complete tent including the equipment and heater can be transported safely.

The technology in detail:

Equipment of the radio and conference area

Central workstation with lateral and tilted aluminium communication console for operating the power supply system, radio conference system, telephone system and the radio control console
Foldable table to get in and out of the vehicle easily (alternatively the tabletop can be covered completely with acrylic glass, e.g. to put maps and sketches underneath)
Custom-made table stand with integrated storage space for respiratory protection monitoring units
Wall unit with gas pressure spring equipped flaps
Side cabinets with smooth-running roller blind shutter
Magnetic whiteboard behind the driver's seat
Open storage with back upstand above the driver's cab as expansion of the storage options on-board and integrated, separately switchable driver's cab lighting
Waterproof, non-slip and sealed floor
Folder shelves with foldable fiddle integrated in the partition wall
Awning with 4m length and 2,5m projection, awning box painted in the colour of the vehicle

Interior of the tool-storage area

Mounting and lashing possibilities for auxiliary heater and supplies

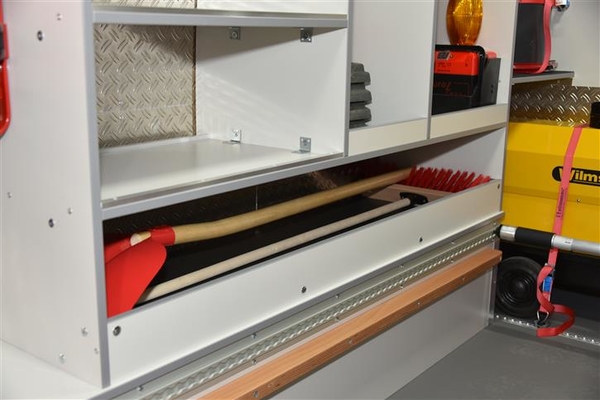

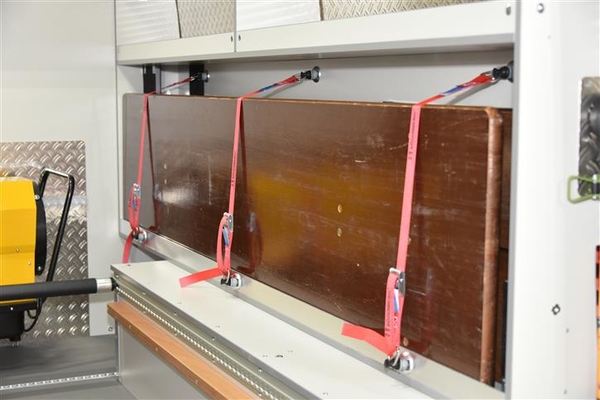

Storage shelves on both sides to stow Euroboxes, traffic cones, radar speed lights / surface obstacle lights, fire extinguisher, broom, shovel and two complete beer tent set ups
Folding ramp with a load capacity of up to 500kg for loading the equipment cart

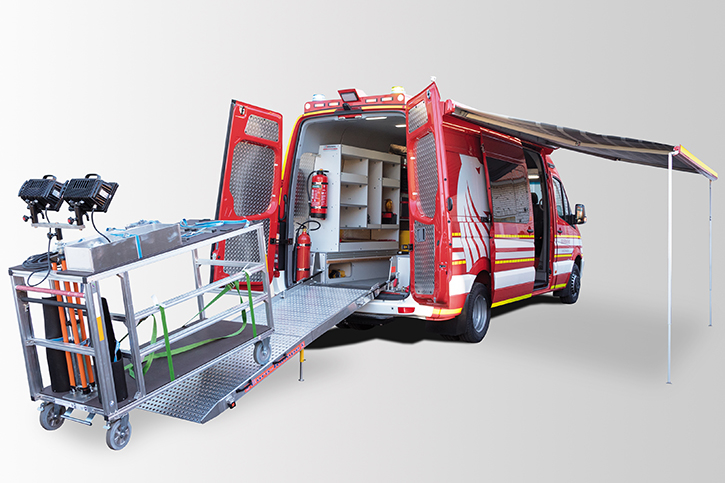

Highlight: Integrated mounting in the tool-storage area for the transport of an equipment cart including the tent

Electrical system

Rettbox-feed socket (alternatively also DEFA, PowAirBox or CEE possible)
Intelligent 180Ah lithium-ion battery
Inverter-charger-combination with 1600 watt real sine alternating current
12V distribution with CAN-Bus controlling and monitoring
Charging converter for the power supply of the energy system via the vehicle generator in Euro6 vehicles
Switch to change between LED workspace and driver's cab lighting and red LED night lighting
LED cargo hold lighting
Additional 12V and 230V junction boxes in the cargo hold
Highlight: Intelligent CAN-Bus power supply system with touch screen to display systematically relevant information

Special signalling system

Hänsch DBS 4000 in the front with offset E-horn behind the bumper. Additionally switchable via foot switch at the driver's seat
Announcement and radio intrusion

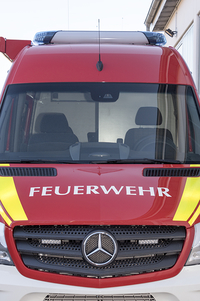

Two front flashers integrated in the grille
Separately switchable periphery lighting of B- and D-pillar through bright LED-light modules
Highlight: Bösenberg roof console at the vehicle rear with 3. blue flashing light, integrated periphery lighting for the rear, rear warning system, integrated indicator and green flashing light for marking the command post

Radio communication

2x TETRA-BOS radios (one with preliminary setup) with external card readers
2x 4m BOS radios
3x 2m BOS radios (2x FuG 9c, 1x Active Mount for Kenwood TK-290)
Exterior antenna connection for operating an offset antenna
2x charging holder for 2m handheld radio
Radio control system Funktronic Major with gooseneck microphone, phone and four-circuit control
Headset and foot switch
Additonal handset for emergency workstation (rotated passenger seat)
