Medium Command Vehicle (VW Crafter)

This concept for modern command vehicles with two fixed radio workstations is equipped with an innovative, maintenance-friendly power supply system. The multiple operating system LARDIS revolutionizes the operation of analogue and digital radio systems thanks to an easily understandable user interface.



The interior is also available for vehicles with a high roof.

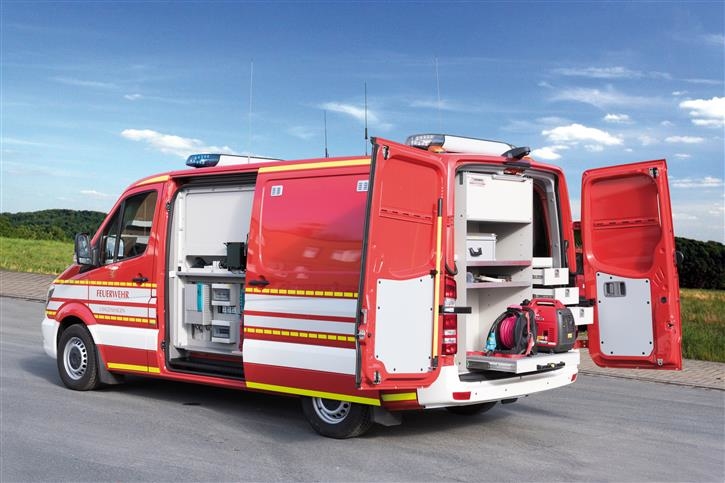

  • Mercedes-Benz Sprinter with medium wheelbase and flat roof. Special signalling system 2x Hänsch DBS 4000, blue/yellow switchable in the back
    Mercedes-Benz Sprinter with medium wheelbase and flat roof. Special signalling system 2x Hänsch DBS 4000, blue/yellow switchable in the back
    Image 1 of 6

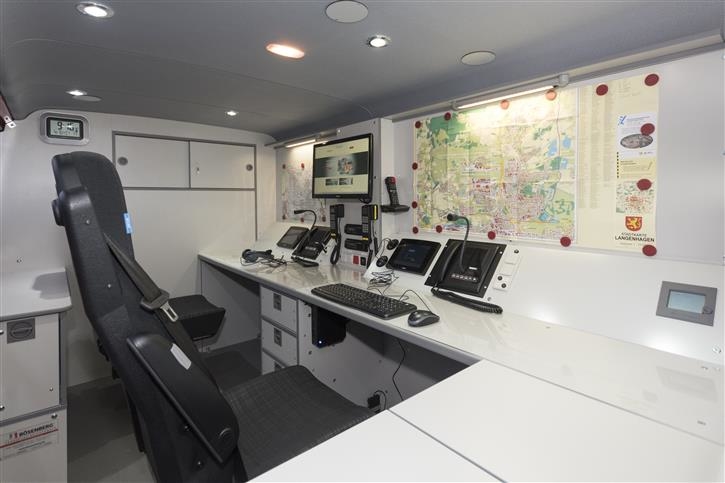

  • Two spacious work stations with multiple adjustable swivel seats.
    Two spacious work stations with multiple adjustable swivel seats.
    Image 2 of 6

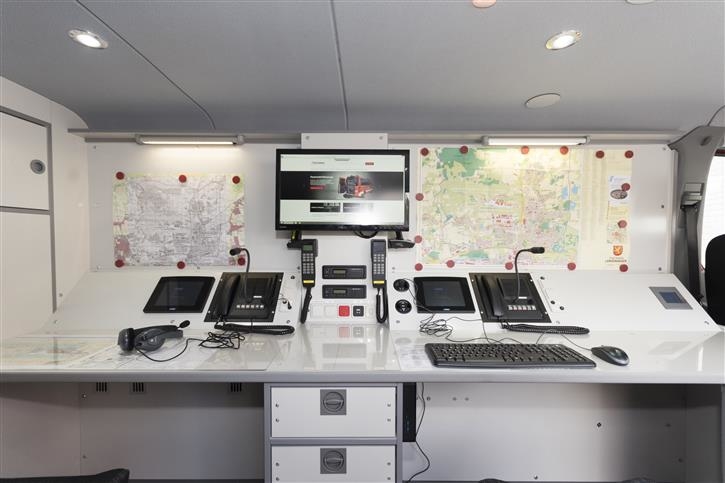

  • Multiple radio operating system LARDIS. Computer with pivoted monitor, outlets for headset and USB devices.
    Multiple radio operating system LARDIS. Computer with pivoted monitor, outlets for headset and USB devices.
    Image 3 of 6

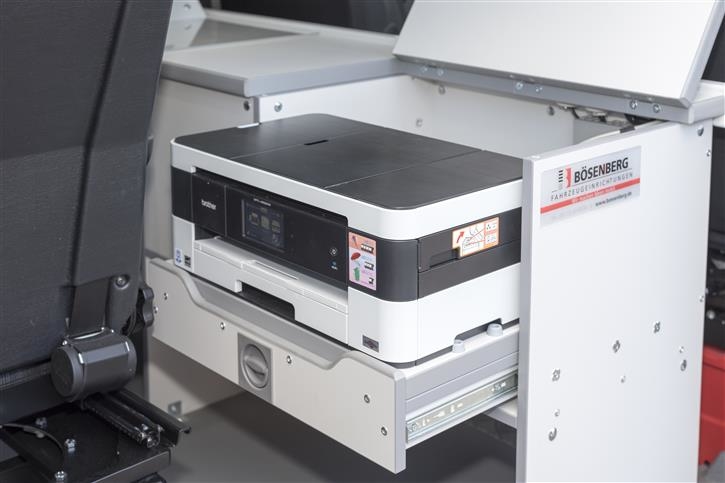

  • Multifunctional device for printing, copying, scanning and faxing.
    Multifunctional device for printing, copying, scanning and faxing.
    Image 4 of 6

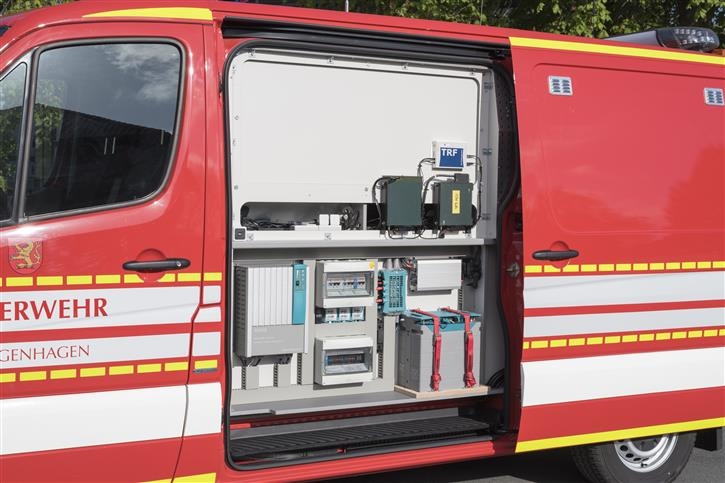

  • Power supply via lithium-ion battery and CAN bus controlled battery monitoring. Maintenance-friendly installation behind the left sliding door.
    Power supply via lithium-ion battery and CAN bus controlled battery monitoring. Maintenance-friendly installation behind the left sliding door.
    Image 5 of 6

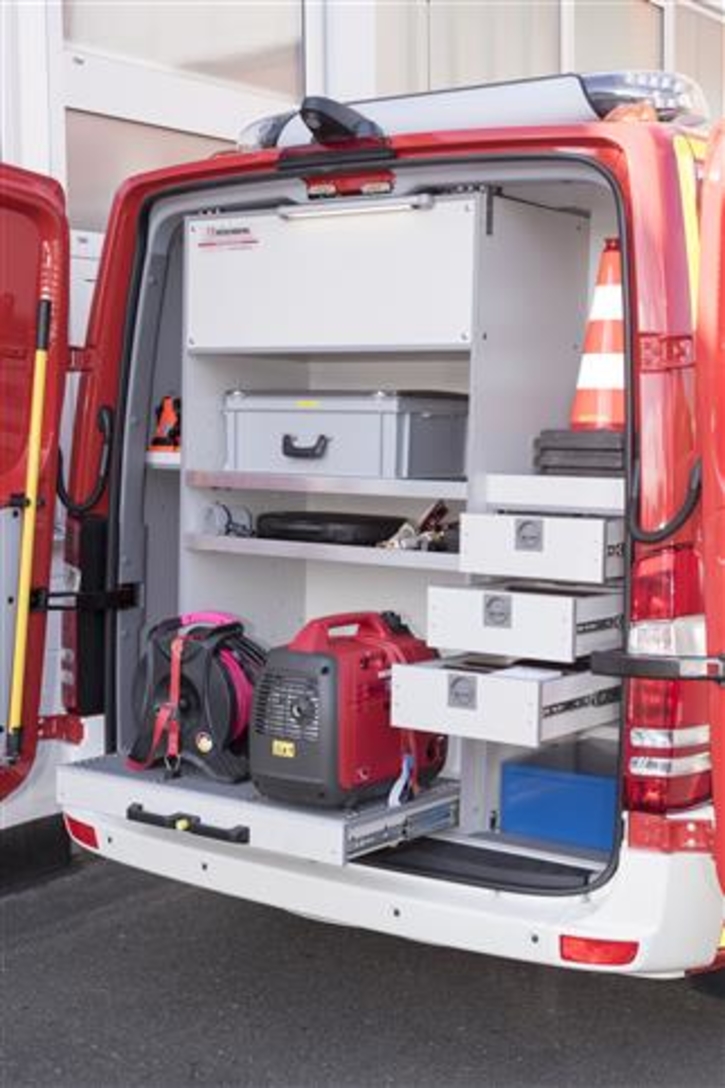

  • Individual rear interior with heavy duty drawer.
    Individual rear interior with heavy duty drawer.
    Image 6 of 6

Feature List (Excerpt) and Options

  • Flashing blue lights from Hella, Hänsch et al. with LED flashing lights in the front grille and rear. Connection of the car radio with the public-address microphone
  • Rear view camera with a TFT colour screen and infrared night vision
  • 230 V roof air conditioner. Power supply via CEE external feed or a battery
  • Power supply with energy control via CAN-Bus, lithium ion or AGM batteries, inverter, safety switch, mulitple circuits, electric cut out switch for an external power supply, etc. Internal charger. Hidden installation of all cables
  • Fully integrated 12 V battery unit. Electric lighting with energy-efficient LED technology
  • Side awning
  • LED periphery lighting
  • Roof stowage above the driver's cab (with a high roof)
  • Laptop workstations with a connection possibility for a multi-function device (fax, printer, scanner)
  • Internet access via WLAN, LTE and/or satellite (redundant)
  • Analogue and digital radio technology, upon request with a LARDIS® multiple operating system. Configuration according to customer request. Antenna technology incl. high-quality couplers for digital radio
  • Radio mast
  • Loading according to DIN or the integration of existing components
  • Customised labelling, also retro-reflective
